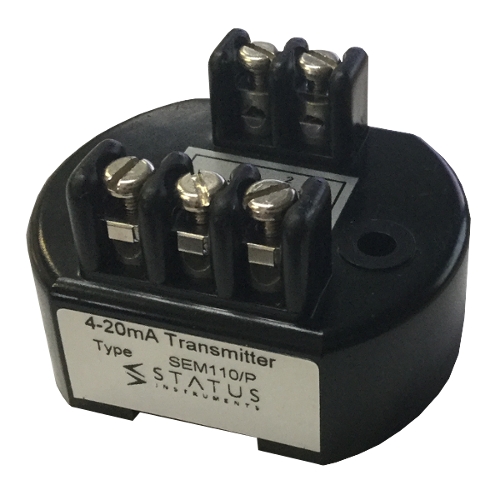

Status SEM110X PT100 ATEX Analogue Transmitter


Status SEM110X/P

(4 TO 20) mA TRANSMISSION
DIN HEAD MOUNTING
SPECIAL SPANS AVAILABLE
ATEX APPROVED
5 YEAR WARRANTY

The Status SEM110 is a high performance temperature transmitter. It provides the industry standard (4 to 20) mA transmission signal and yet is small enough to simply replace a connecting block in the majority of DIN standard connecting heads. alternative mountings are available to enable the transmitter to be mounted on a DIN rail or inside an enclosure.

The SEM110P accepts Pt100 platinum resistance temperature sensor to BS 1904 or DIN 43760 standards and converts the sensor temperature to a current varying between 4 and 20 mA. Versions are also available for Thermocouple (TC) slide wire (W), variable resistor (Z) or differential temperature (D). The same two wires that power the transmitter also carry the transmission current such that only two connections are required. This drastically reduces installation and wiring costs whilst the nature of current provides a superb noise immunity and ensures that line impedances, thermoelectric effects etc.
do not introduce errors.
[1.206372SEM110.pdf click here to view file attachment]
