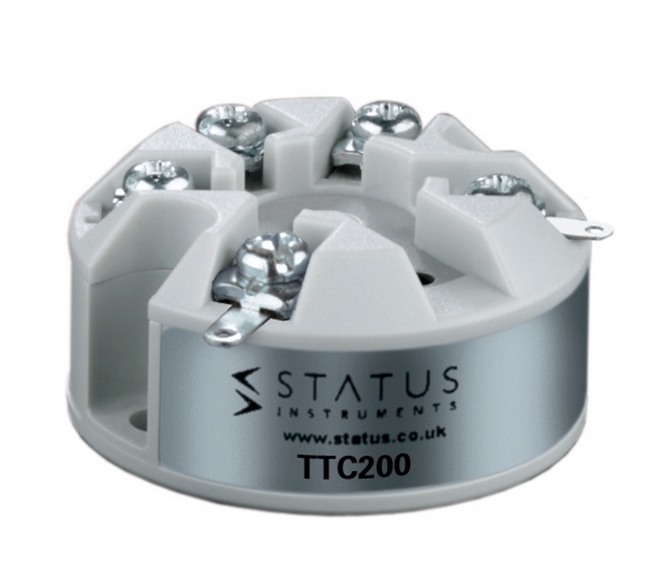

Status TTC200 Temperature Transmitter


Status TTC200 TTC200X

K, J, N, E, T, R, S, L, U, B, C(W5), D(W3), G(W) plus mV INPUTS

ATEX AND IECEx APPROVED VERSION

22 SEGMENT USER LINEARISATION mV INPUT

SENSOR OFFSET AND OUTPUT ALIGNMENT

ISOLATED INPUT

PROGRAMMABLE BURNOUT

The TTC200 "smart" in head temperature transmitter accepts thermocouple temperature sensors and converts the

sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal. Two versions are

available; standard and ATEX / IECEx approved for hazardous areas.

PC configuration allows the user to select TC type, Range, Filter, units, linearization and Burnout direction, without

requiring calibration equipment. Additionally, the user may read live process data when connected to the PC, this

allows for sensor offset, and output alignment calibration, where the user can enter values to match the actual

process and therefore reducing system errors.

If required the desired range can be specified at the time of order, removing the need for user configuration.

If the range is not specified then the transmitter will be shipped with the default range of (0 to 1000) C type K.





[1.865597TTC200.pdf click here to view file attachment]
